How to Configure Live Answer During Business Hours and Auto Attendant After Hours

Prerequisites

In order to set the Answering Rules for live answer during business hours and auto attendant after hours, the below prerequisites are required. Office Hours and Lunch Hour need to be determine and the Time Frames built (see How to Build Time Frames documentation).

• Office Hours defined (Time Frames)
• Main Telephone Number (ex. 954-607-6031)
• Routing User Extension (ex. Main Line Ext 1000)
• Front Desk Extension (ex. Front Desk Ext 1001)
• Auto Attendant Added (ex. ABC High Ext 9005)

Example Time Frames for Office Hours and Lunch Hour

Office Hours:

Lunch Hour:

Default:

The "Default" Time Frame will be referenced automatically during all times not defined by the previous time frames. This Time Frame should be treated as "Off Hours" to prevent having to define every single moment of the day

Call Flow

Number	Action	Number	Answering Rule	Action	Number	Action
954-607-6031	Routes to	"Main Line" 1000	Lunch hours	Forward Always	Auto Attendant Ext 9005	Caller Routes through Menu
			Office Hours	Forward Always	"Front Desk" Ext 1001	Live Answer
			Default (Off Hours)	Forward Always	Auto Attendant Ext 9005	Caller Routes through Menu

Process

1.

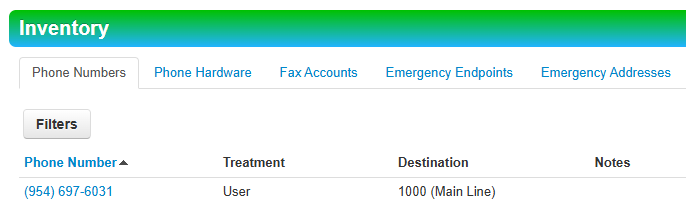

1. Click on the Inventory >tile.

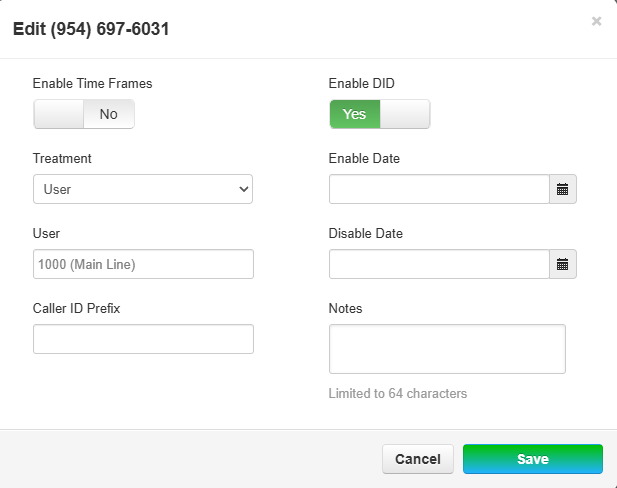

   2. Locate Phone Number (954-697-6031) >and click to edit. Note: you can also use the pencil to edit.



   3. Assign Treatment as User >and Assign toassign Ext 1000 (Main Line)

   to
   1. User.



   4.

   2. Click on the Users tile.



2. Users >

   5. Locate the Routing User (Main line)Line) Ext 1000 >and Editclick >to edit. Note: you can also use the pencil to edit.



   6. Click the Answering Rules >tab and then Add RuleRule.



   1. 7. Add Time Frame of Lunch HoursHour >to Forward Always to Auto Attendant

      and
      1. Save.



      8.

      Add
   Time

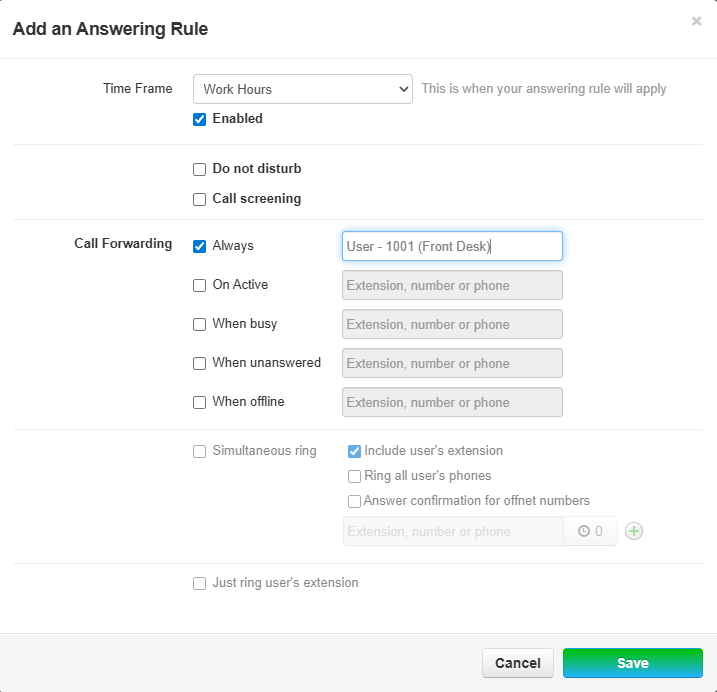

   2. Frame of Work Hours >to Forward Always to Front Desk
      1. Desk.



      9.

      Set
   the
   3. Default (Off Hours) >to Forward Always to Auto Attendant
      and
      1. Save.





   4. Finished Answering Rules:

      1.
